Create and Maintain Relations

Maps created in M-Files Process Maps can automatically establish relationships between the M-Files objects used. This is very useful if you use your process maps not only to map processes, but also to serve as a connector between departments, processes, systems, and documents.

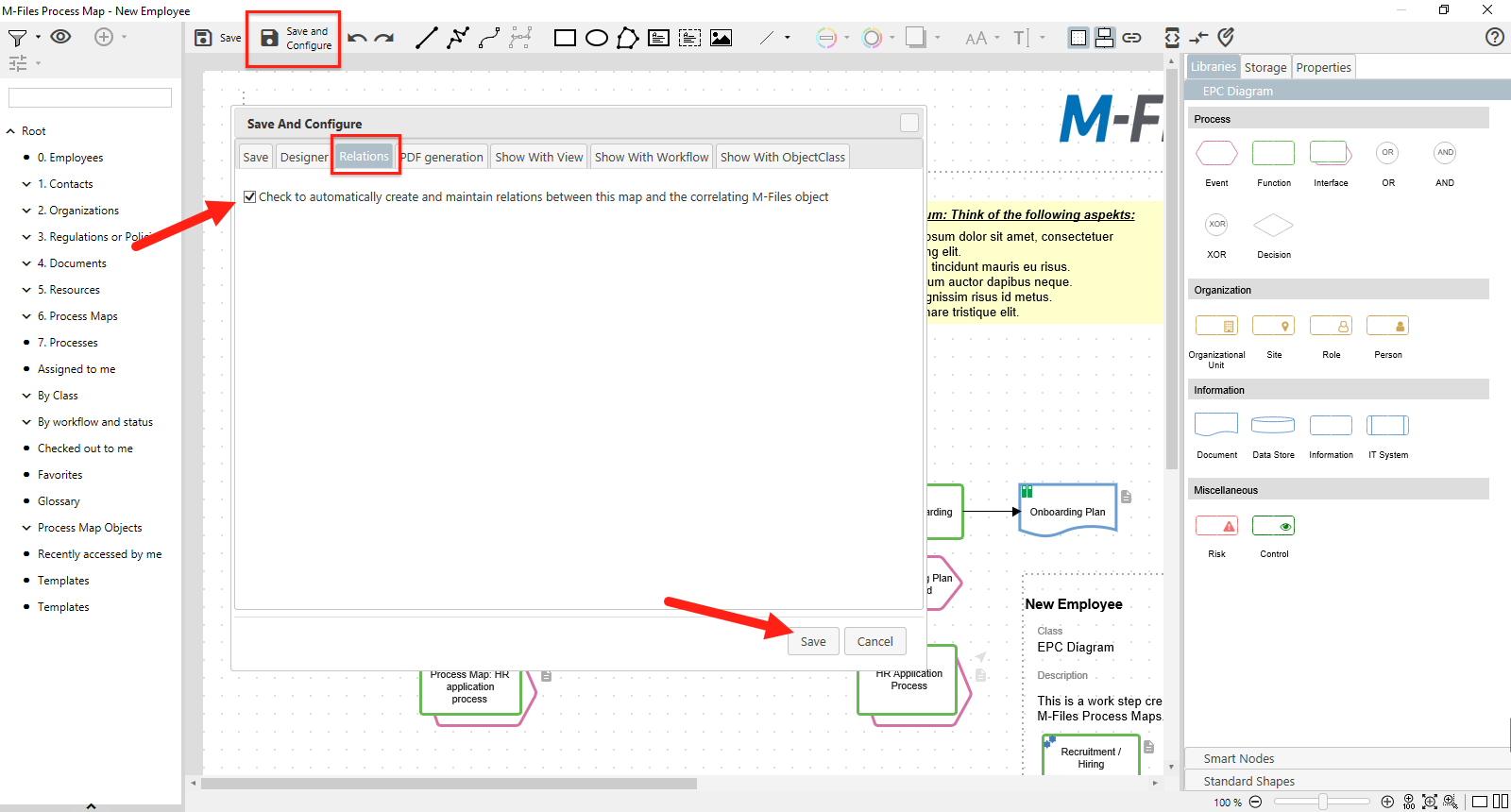

For this function enable the Check to automatically create and maintain relations between this map and the correlating M-Files object option on the Relations tab in the Save and Configure window. This can be used to save the map within the top toolbar of the Process Maps Designer.

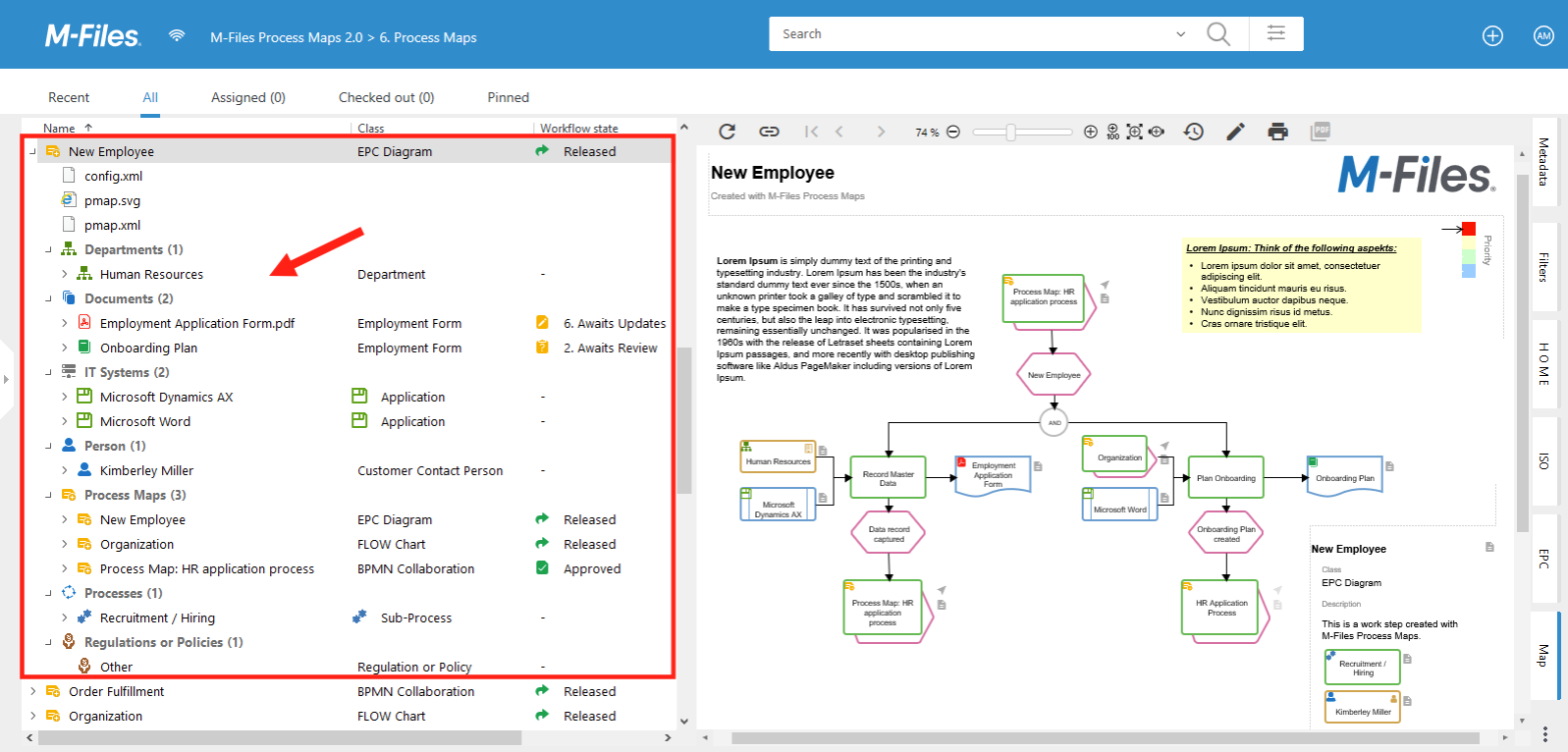

As a result, you can expand the 360° view on a map object, visualize the relations and navigate between them.

Note: This behaviour is digital and it currently can only be enabled/disabled for ALL objects and documents. The link direction always goes from the map to the object.
