Create a Process Map

Process maps are stored in M-Files like any other object. They can be tagged with metadata, versioned, and quickly found using the search function.

Creating a Process Map


Select class


Enter Metadata

Complete the following steps to successfully create a process map in M-Files:

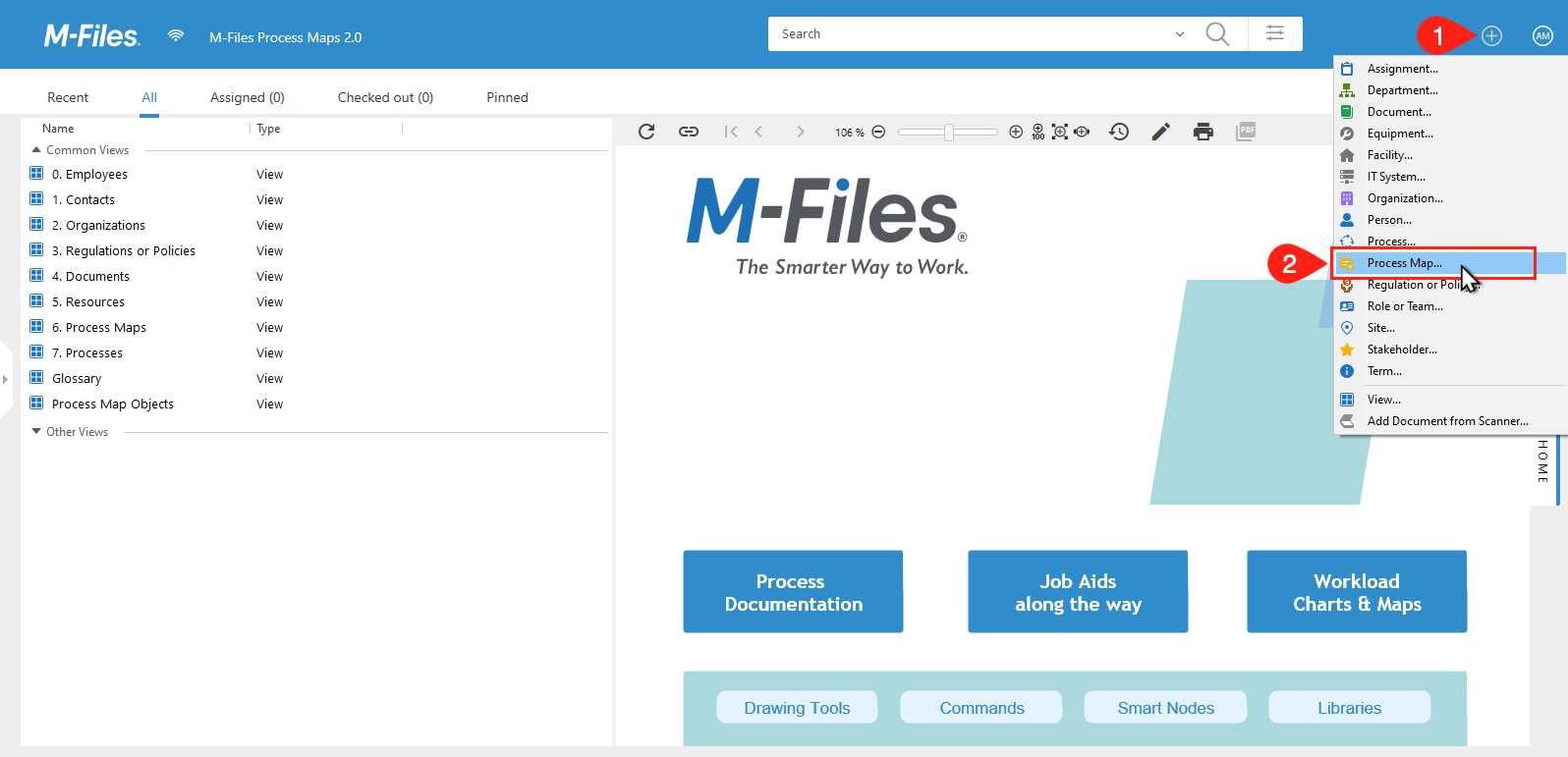

  1. Open the Create menu.
  2. Choose a Process Map Object.

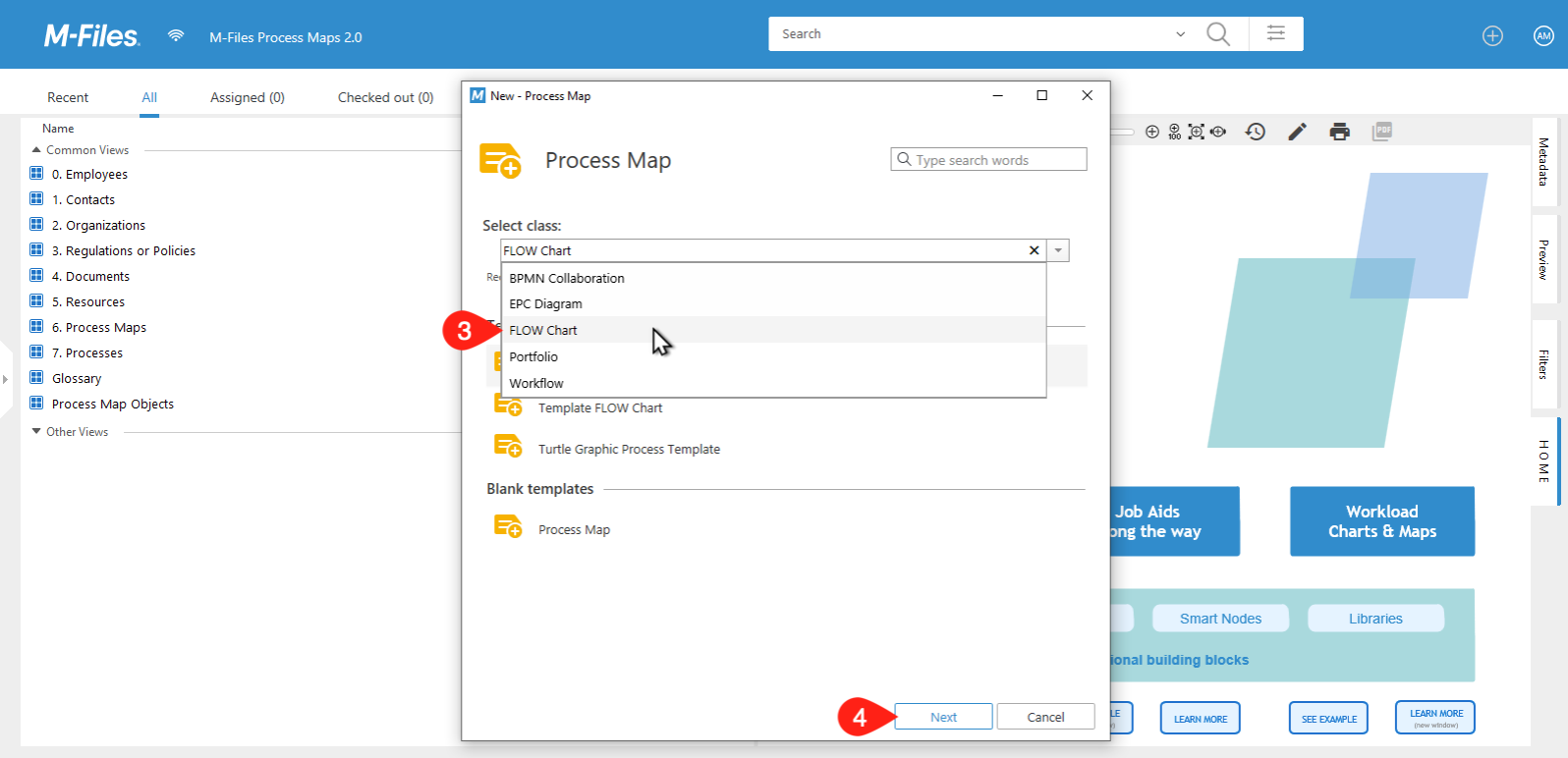

  3. Specify what sort of map you would like to create. Select a Process Map Class or create a map using a template.
  4. Click next.

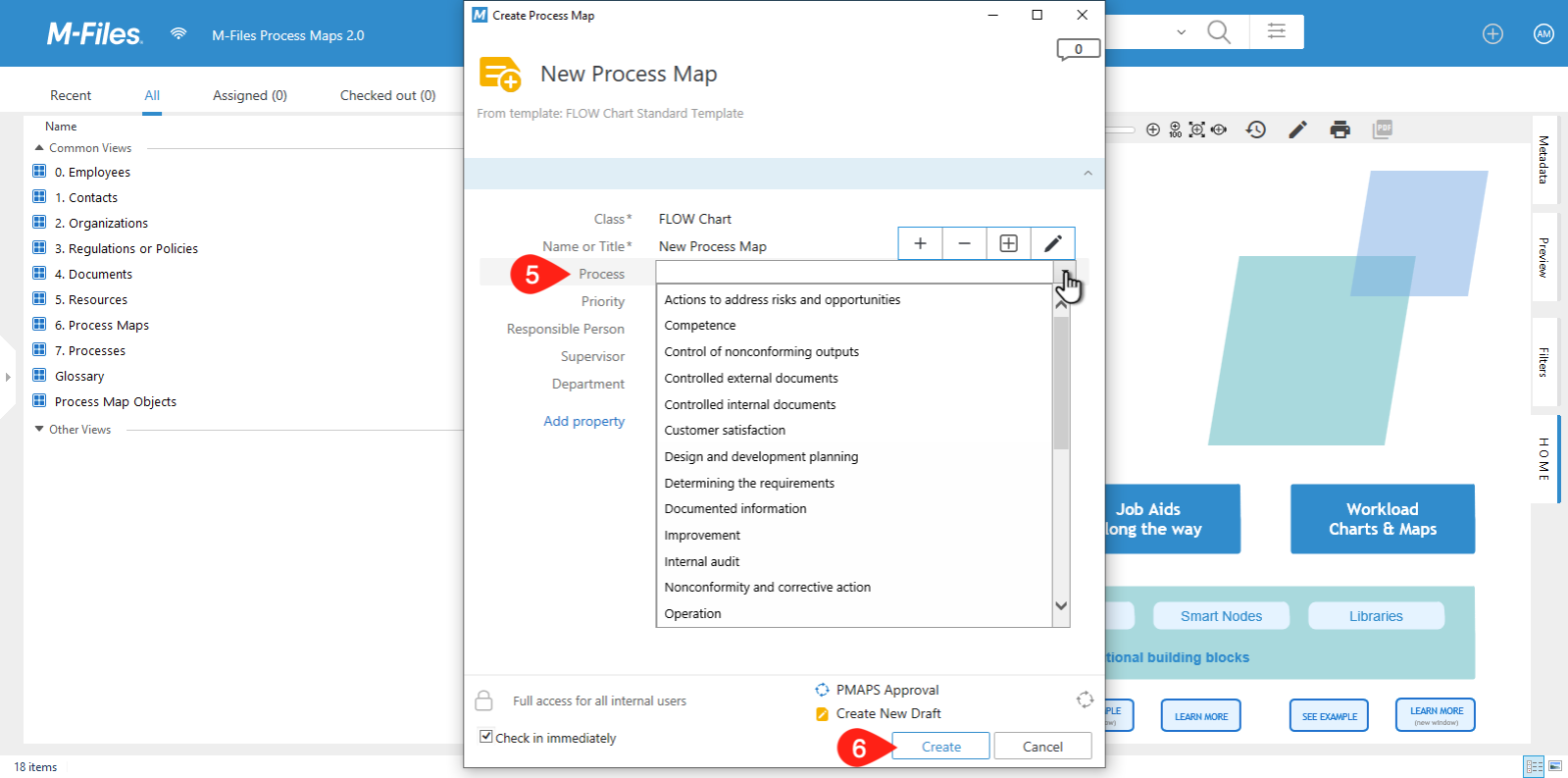

  5. Fill in the rest of the metadata card.
  6. Click Create.


Once created, double click on the map to open the Process Maps Designer.

Open the Map
